PRODUCT CENTER
EFI System
Zhengyao EFI Electronic Fuel Injection System is designed for aviation two-stroke engines. Based on real-time engine operating-state sensing and intelligent ECU control, it continuously optimizes fuel injection and ignition characteristics to improve the EFI system’s adaptability to engine variation and enhance power stability. The system enables precise combustion control, reduces fuel consumption, and suppresses thrust fluctuations. It also monitors engine health in real time and diagnoses fault information, while supporting CAN/RS232 data transmission and system integration. The system is currently compatible with multiple engine displacements, including 120 cc, 170 cc, and 222 cc, and can be customized for specific electronic fuel injection system development requirements.
Optional starter-generator module
400W
Output Power
28V
Output Voltage
720g
Starter-generator Motor Weight
420g
Starter-generator Controller Weight
ECU
Electronic Throttle Body
Electronic Fuel Injector
Throttle Position Sensor
Starter-generator
Product Advantages
Overall fuel-saving rate improved by about 10%
(standard test conditions)
RPM fluctuation under steady-state conditions <3%
fluctuation amplitude reduced by 70%
High thrust linearity
close to motor-level control
Product Features

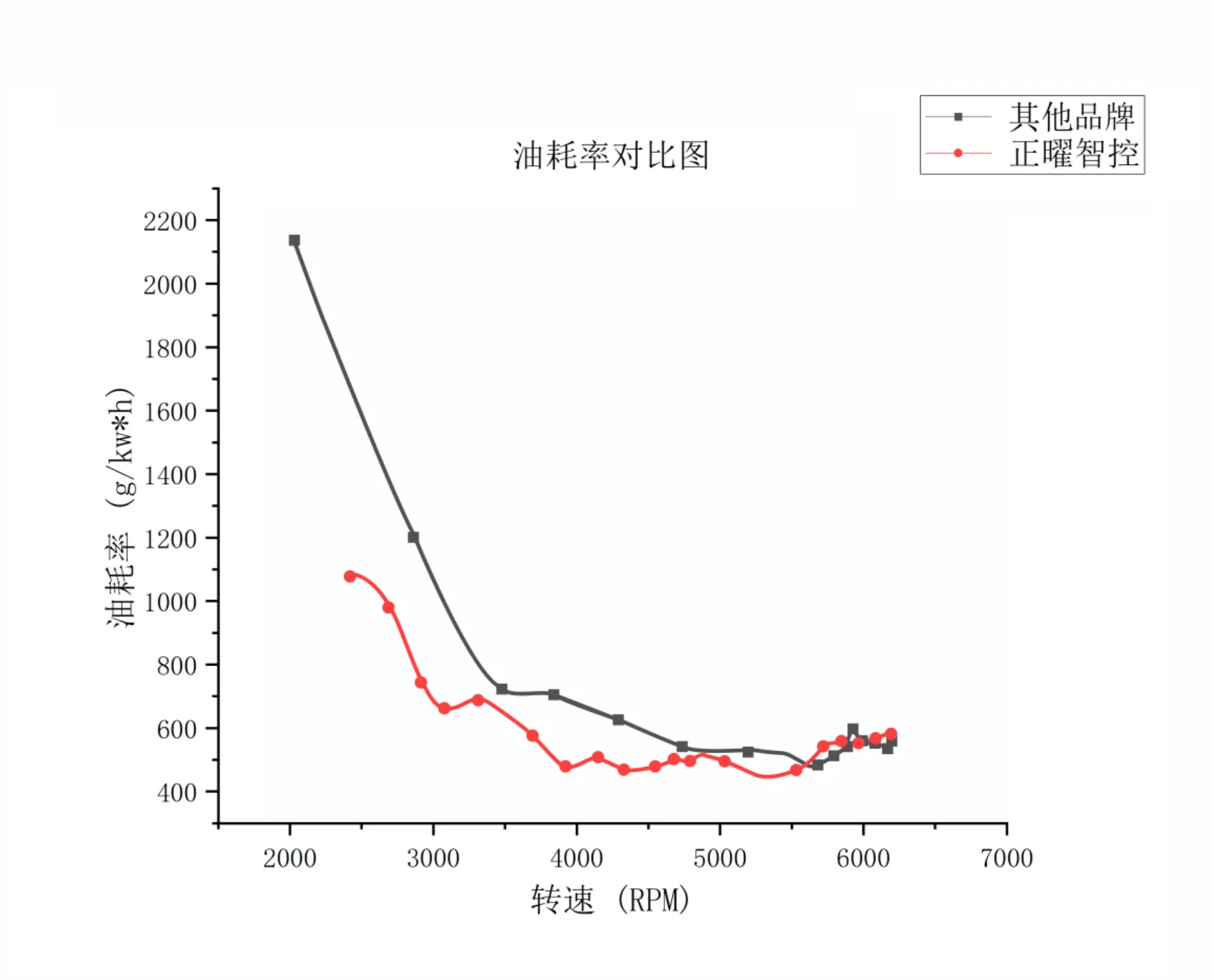

High Fuel Efficiency, Outstanding Economy
Overall fuel-saving rate improved by about 10% (standard test conditions)

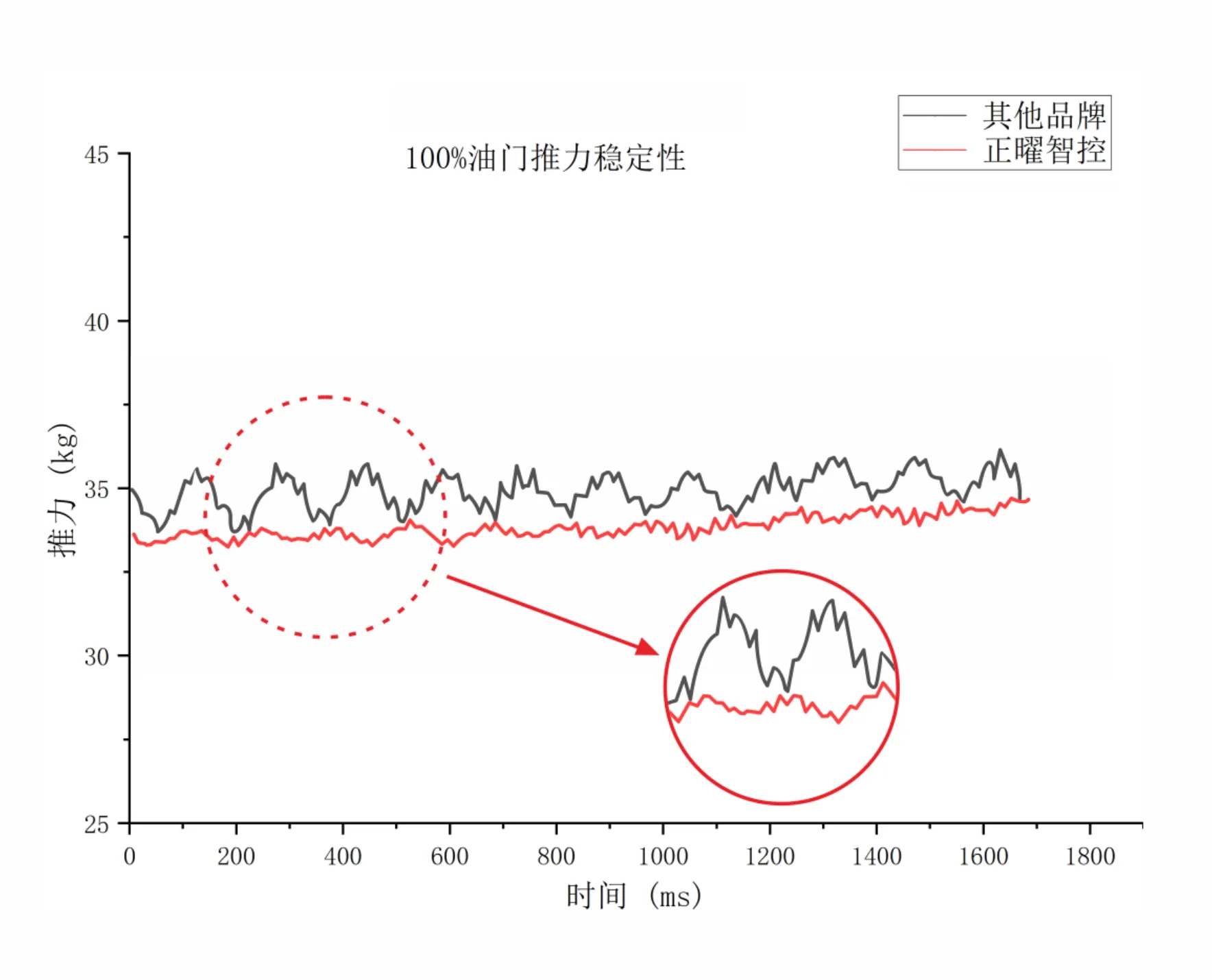

Stable and Controllable, Smooth Power Output
Speed fluctuation under steady-state conditions <3%, fluctuation amplitude reduced by 70%, stable power output throughout

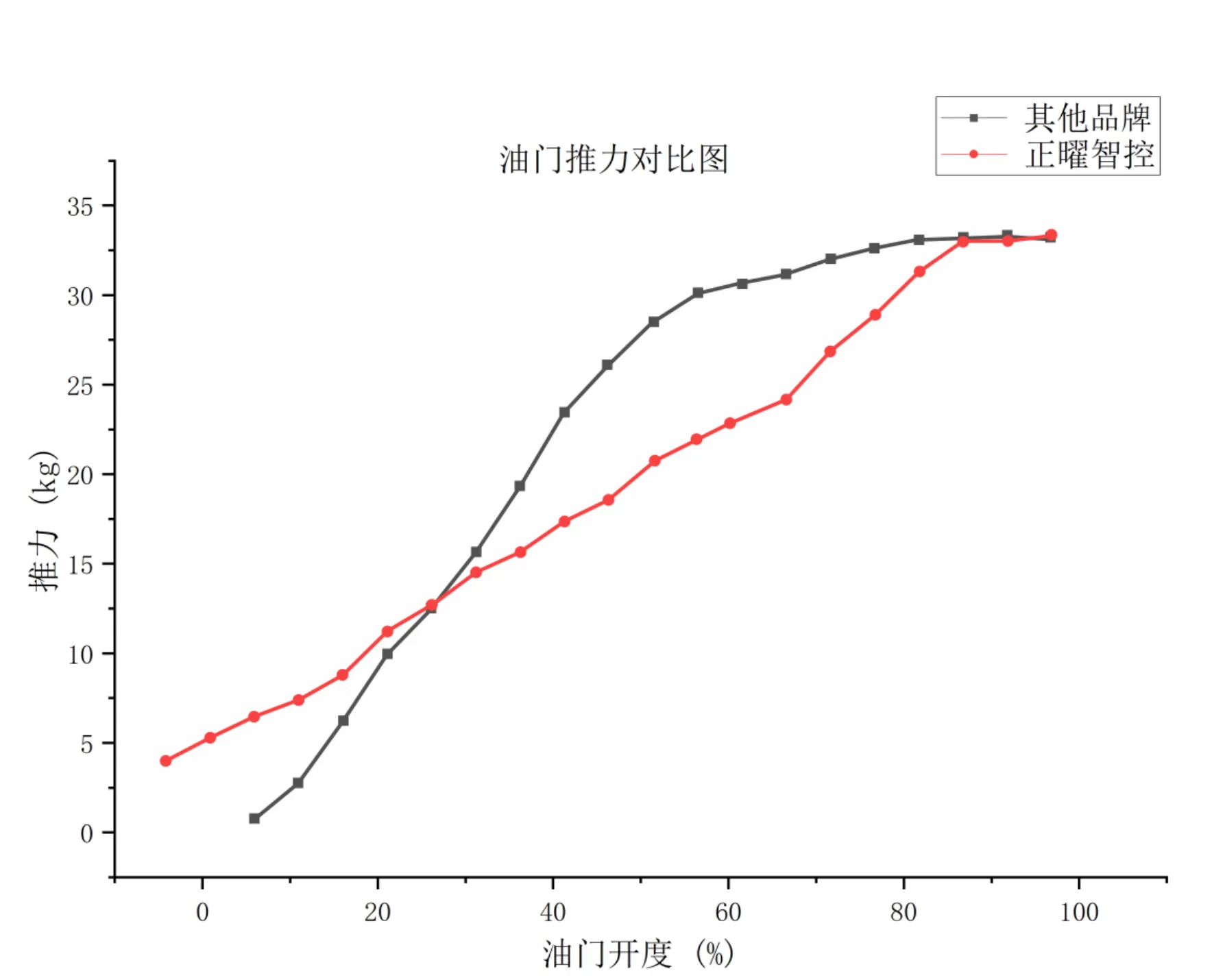

Motor-like Control Linearity
High thrust linearity, close to motor-level control
Environment-adaptive, No Needle Adjustment Required
Precise temperature and pressure compensation, intelligent adaptation to dynamic environments
Transparent Data, Flight Controller Integration
CAN feedback for RPM, temperature, and throttle opening
One-click Start, No Manual Pulling
Optional electric start, one-click ignition, and in-air ignition
In-air Power Supply, 24V 1400W
Optional starter-generator integration to reduce battery load and extend flight time
Custom Calibration, Optimal Propeller-engine Matching
Supports propeller-specific customization for optimal thrust and fuel consumption performance

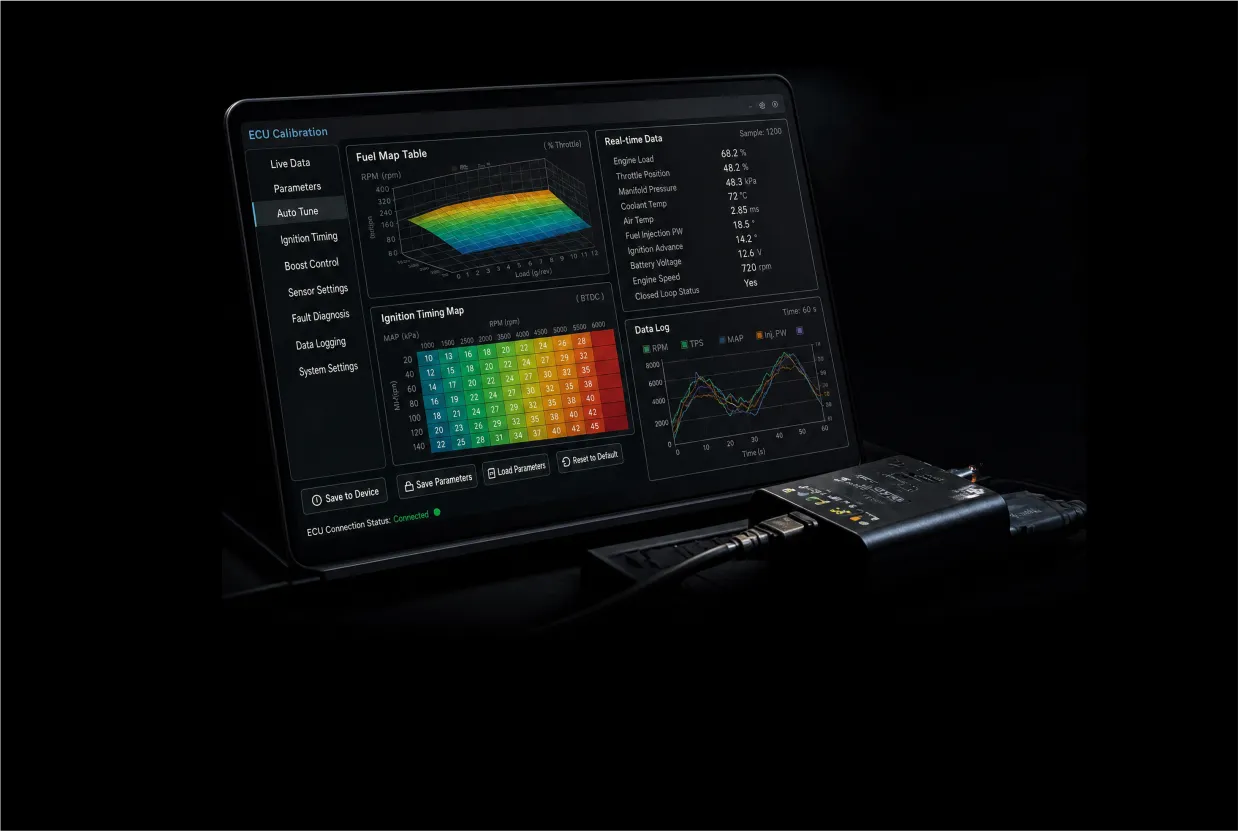

Custom Calibration Service

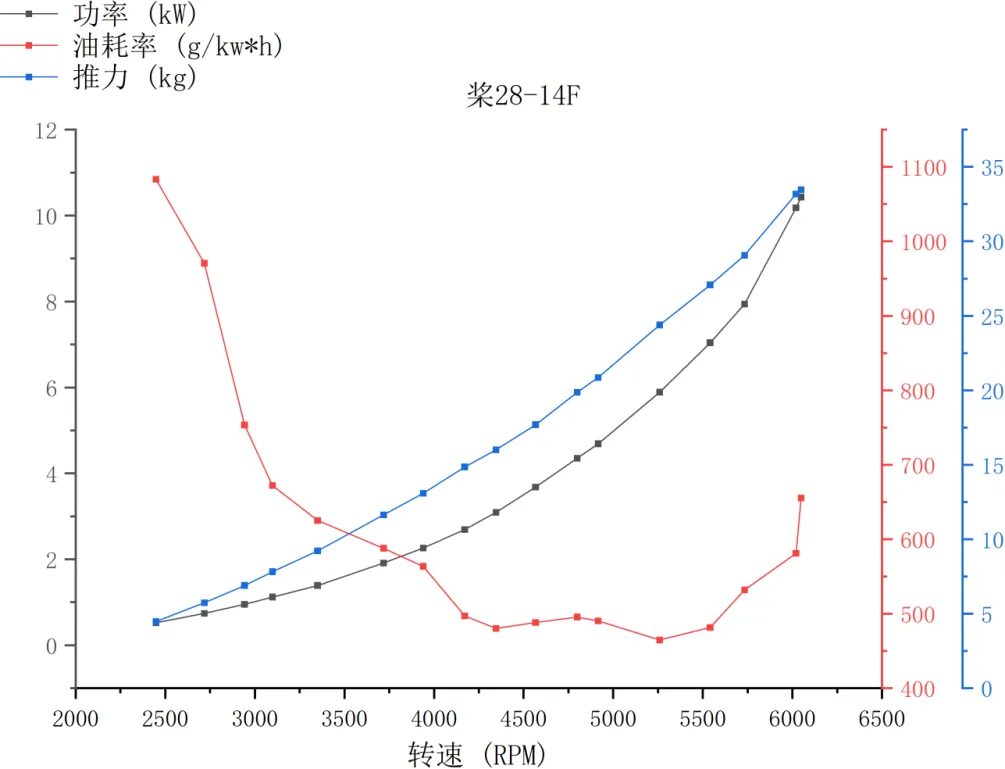

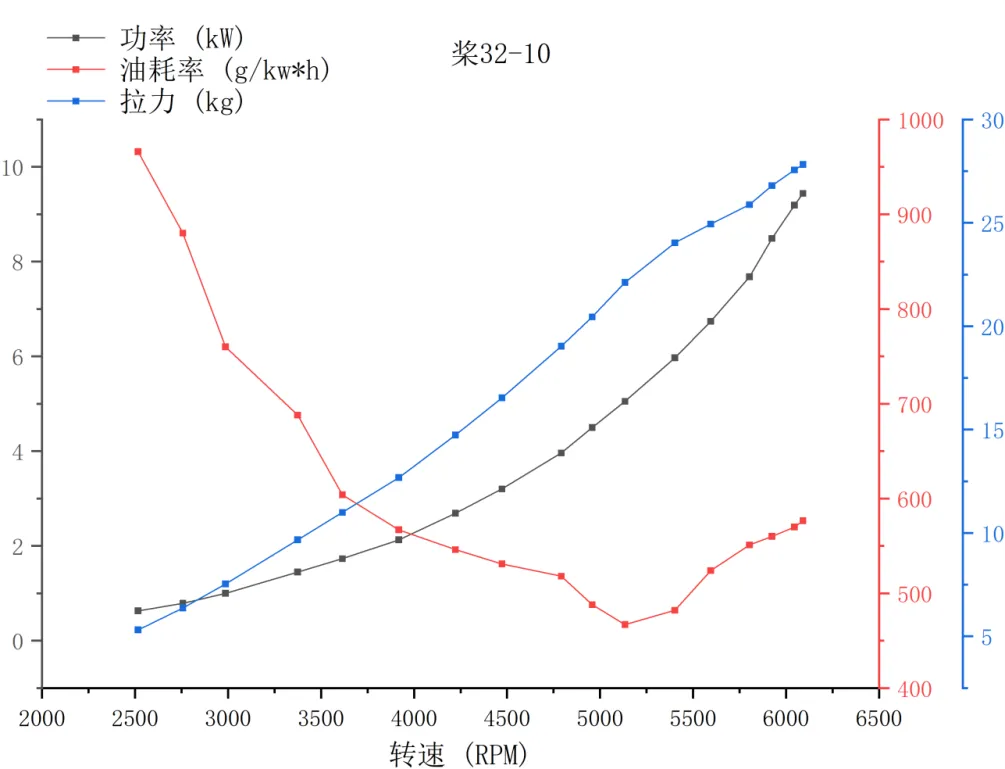

For different propeller models, such as common 32x10 and 28x14F types, engine parameters are independently matched so each propeller can deliver optimal thrust and fuel consumption performance. Customization is available based on the propeller type you use.
Custom calibration service
